3D Printable Drone

Embarking on the journey of creating a 3D Printable Drone is an exciting venture that combines the worlds of 3D printing and drone technology. This guide will walk you through the essential steps, from conceptualizing your design to assembling and testing your 3D Printable Drone. Whether you're a hobbyist or an enthusiast, this comprehensive guide will help you bring your drone project to life.

Table of Contents

Understanding the Basics of 3D Printable Drones

Before diving into the design and printing process, it's crucial to understand the fundamental components of a 3D Printable Drone. These components include:

Frame: The structural base of the drone, which can be 3D printed.
Motors: Essential for propulsion and maneuverability.
Electronic Speed Controllers (ESCs): Regulate the speed of the motors.
Flight Controller: The brain of the drone, managing stability and flight dynamics.
Propellers: Provide the necessary lift and thrust.
Battery: Powers the entire system.
Receiver and Transmitter: Enable remote control of the drone.

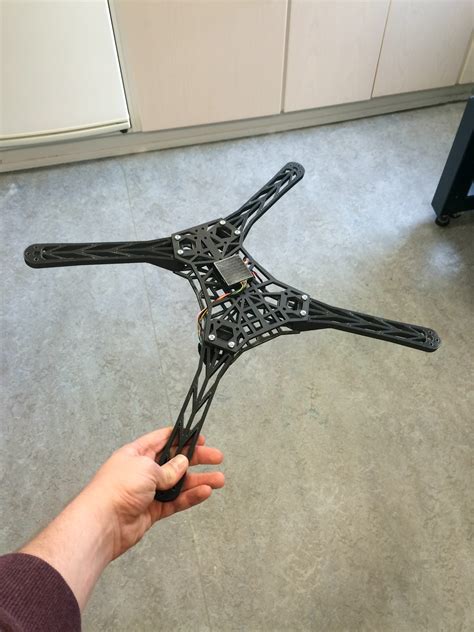

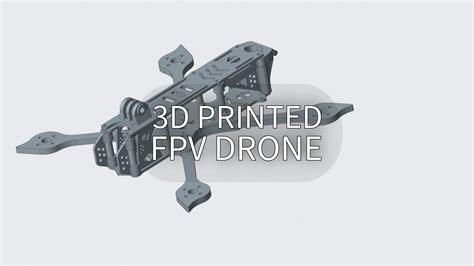

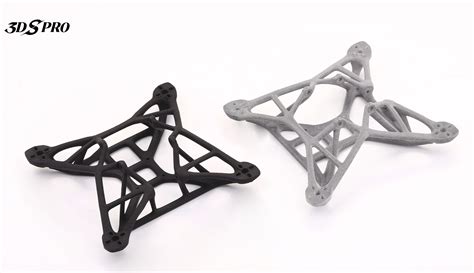

Designing Your 3D Printable Drone Frame

Designing the frame is the first step in creating your 3D Printable Drone. The frame serves as the backbone, supporting all other components. Here are the key considerations for designing your frame:

Material Selection: Choose a durable and lightweight material like PLA or ABS for 3D printing.
Size and Shape: Determine the size and shape based on the intended use and payload capacity.
Mounting Points: Ensure there are adequate mounting points for motors, ESCs, and other components.
Weight Distribution: Balance the weight distribution to maintain stability during flight.

You can use 3D modeling software like TinkerCAD, Fusion 360, or Blender to design your frame. These tools offer a range of features to help you create a precise and functional design.

💡 Note: Consider printing a prototype to test the design before committing to the final version.

Selecting the Right Components

Choosing the right components is crucial for the performance and stability of your 3D Printable Drone. Here’s a breakdown of the essential components and their specifications:

Component	Specification	Considerations
Motors	Brushless DC motors (e.g., 2204 920KV)	Choose motors based on the desired thrust and efficiency.
ESCs	30A ESCs	Ensure compatibility with your motors and flight controller.
Flight Controller	NAZE32 or F4 flight controller	Select a flight controller with advanced features like GPS and telemetry.
Propellers	1045 or 1147 propellers	Choose propellers that match the motor specifications for optimal performance.
Battery	3S or 4S LiPo battery	Select a battery with sufficient capacity and discharge rate.
Receiver and Transmitter	2.4GHz radio system	Ensure compatibility with your flight controller and remote control.

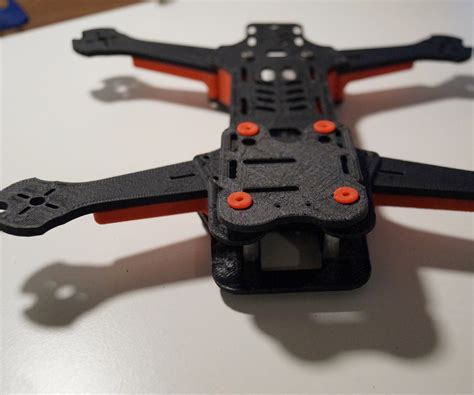

3D Printing Your Drone Frame

Once your design is complete, it's time to 3D print your 3D Printable Drone frame. Follow these steps for a successful print:

Slicing Software: Use slicing software like Cura or PrusaSlicer to prepare your model for printing.
Print Settings: Adjust settings such as layer height, infill, and print speed for optimal results.
Material: Ensure you have the correct filament loaded in your 3D printer.
Printing: Start the print and monitor it for any issues.

After printing, allow the frame to cool down and remove any support material. Inspect the frame for any defects and make necessary adjustments.

💡 Note: Post-processing steps like sanding and painting can enhance the appearance and durability of your frame.

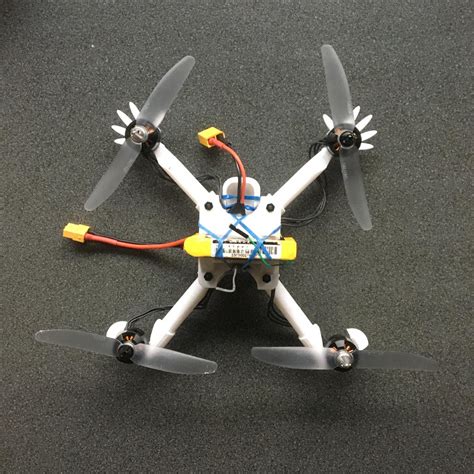

Assembling Your 3D Printable Drone

With the frame printed and components selected, it's time to assemble your 3D Printable Drone. Follow these steps for a smooth assembly process:

Mounting Motors: Secure the motors to the frame using screws or bolts.
Connecting ESCs: Connect the ESCs to the motors and the flight controller.
Installing Flight Controller: Mount the flight controller to the frame and connect it to the receiver and other components.
Attaching Propellers: Secure the propellers to the motors, ensuring they are correctly oriented.
Battery Connection: Connect the battery to the ESCs and ensure proper power distribution.
Testing Connections: Double-check all connections to ensure they are secure and functional.

Once assembled, your 3D Printable Drone should be ready for initial testing. Ensure all components are functioning correctly before proceeding to flight tests.

💡 Note: Always follow safety guidelines when handling electronic components and batteries.

Programming and Calibrating Your Drone

Programming and calibrating your 3D Printable Drone is essential for stable and controlled flight. Here are the key steps:

Flight Controller Software: Use software like Betaflight or Cleanflight to configure your flight controller.
Calibration: Calibrate the accelerometer, gyroscope, and other sensors for accurate readings.
PID Tuning: Adjust the PID (Proportional-Integral-Derivative) settings to achieve stable flight dynamics.
Receiver Binding: Bind your receiver to the transmitter for remote control.
Motor Testing: Test each motor individually to ensure they are functioning correctly.

After calibration, perform a series of test flights to fine-tune the settings and ensure optimal performance.

💡 Note: Regularly update your flight controller firmware for the latest features and improvements.

Testing and Flying Your 3D Printable Drone

Before taking your 3D Printable Drone for a full flight, conduct a series of ground tests to ensure all systems are functioning correctly. Here are the steps to follow:

Ground Tests: Perform motor tests, ESC calibration, and battery checks.
Initial Flight: Conduct a short, controlled flight to assess stability and responsiveness.
Adjustments: Make necessary adjustments based on flight performance and repeat tests.
Advanced Maneuvers: Gradually introduce more complex maneuvers as you gain confidence.

Regular maintenance and updates will keep your 3D Printable Drone in optimal condition for safe and enjoyable flights.

💡 Note: Always fly in a safe and open area, away from people and obstacles.

Creating a 3D Printable Drone is a rewarding project that combines creativity, engineering, and technology. From designing the frame to assembling and testing the drone, each step offers a unique learning experience. By following this guide, you can successfully build and fly your own 3D Printable Drone, opening up a world of possibilities for aerial exploration and innovation.
