410A Pt Chart

Understanding the 410A Pt Chart is crucial for anyone involved in the HVAC (Heating, Ventilation, and Air Conditioning) industry. This chart is a fundamental tool used to determine the performance and efficiency of refrigeration systems, particularly those using R-410A refrigerant. R-410A is a widely used refrigerant in modern air conditioning systems due to its environmental benefits and superior performance characteristics. This blog post will delve into the intricacies of the 410A Pt Chart, its importance, how to read it, and its applications in the HVAC industry.

What is the 410A Pt Chart?

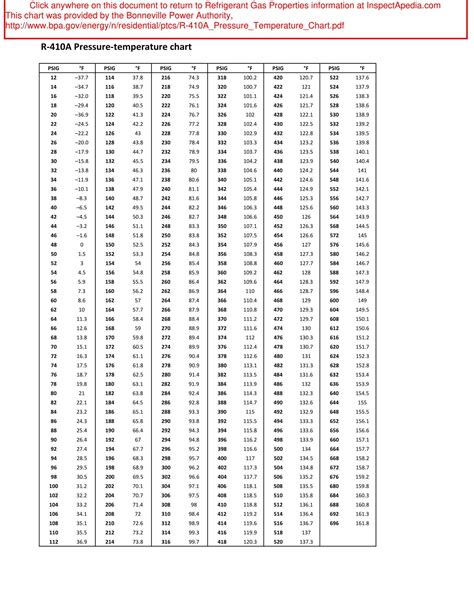

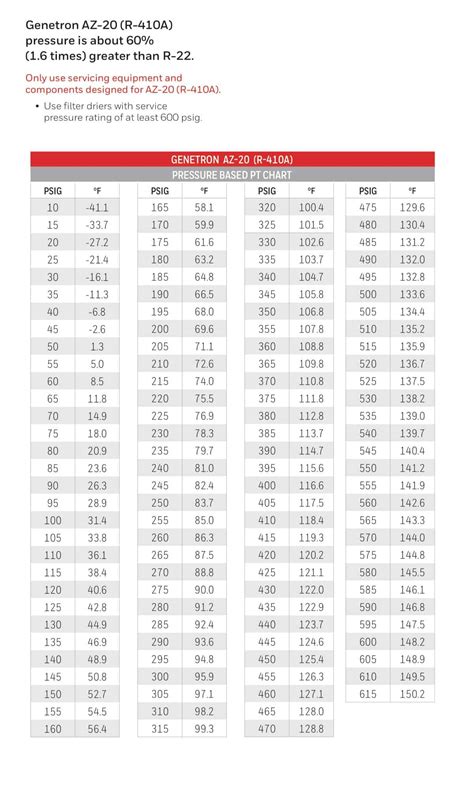

The 410A Pt Chart is a graphical representation that shows the pressure-temperature relationship of R-410A refrigerant. It is essential for technicians and engineers to understand this relationship because it directly affects the operation and efficiency of refrigeration and air conditioning systems. The chart provides critical data points that help in diagnosing issues, optimizing performance, and ensuring the safe operation of HVAC equipment.

Importance of the 410A Pt Chart

The 410A Pt Chart plays a pivotal role in the HVAC industry for several reasons:

• Diagnostic Tool: It helps technicians identify problems in the refrigeration cycle by comparing actual system pressures and temperatures with the values on the chart.
• Performance Optimization: By understanding the pressure-temperature relationship, technicians can adjust system settings to achieve optimal performance and energy efficiency.
• Safety: Proper use of the chart ensures that the system operates within safe pressure and temperature ranges, preventing potential hazards.
• Troubleshooting: It aids in troubleshooting common issues such as low refrigerant charge, high head pressure, and compressor problems.

How to Read the 410A Pt Chart

Reading the 410A Pt Chart involves understanding the relationship between pressure and temperature. The chart typically has two axes: one for pressure (usually in PSI or kPa) and one for temperature (in degrees Fahrenheit or Celsius). Here’s a step-by-step guide on how to read the chart:

1. Identify the Axes: Locate the pressure axis (usually on the y-axis) and the temperature axis (usually on the x-axis).
2. Find the Temperature: Determine the temperature of the refrigerant at a specific point in the system (e.g., the evaporator or condenser).
3. Locate the Pressure: Use the temperature value to find the corresponding pressure on the chart.
4. Compare Values: Compare the chart values with the actual system readings to diagnose any issues or optimize performance.

For example, if the evaporator temperature is 40°F, you would find 40°F on the temperature axis and then move vertically to find the corresponding pressure on the pressure axis. This pressure value can then be compared with the actual pressure reading from the system to ensure it falls within the expected range.

Applications of the 410A Pt Chart

The 410A Pt Chart has numerous applications in the HVAC industry, including:

• System Design: Engineers use the chart to design efficient and safe refrigeration systems by selecting appropriate components and settings.
• Installation: Technicians refer to the chart during installation to ensure that the system is set up correctly and operates within safe parameters.
• Maintenance: Regular maintenance involves checking system pressures and temperatures against the chart to identify and address any issues promptly.
• Troubleshooting: When a system malfunctions, the chart helps in diagnosing the problem by comparing actual readings with expected values.

Common Issues Diagnosed with the 410A Pt Chart

The 410A Pt Chart is an invaluable tool for diagnosing various issues in HVAC systems. Some common problems that can be identified using the chart include:

• Low Refrigerant Charge: If the system pressure is lower than expected for a given temperature, it may indicate a low refrigerant charge.
• High Head Pressure: Elevated pressure readings at the condenser can suggest issues such as restricted airflow, high ambient temperatures, or a faulty compressor.
• Compressor Problems: Abnormal pressure readings can indicate compressor issues, such as worn-out valves or motor problems.
• Leaks: Significant deviations from the chart values can point to refrigerant leaks in the system.

By comparing the actual system readings with the values on the 410A Pt Chart, technicians can quickly identify these issues and take appropriate corrective actions.

Example of Using the 410A Pt Chart

Let’s consider an example to illustrate how the 410A Pt Chart can be used in practice. Suppose you are troubleshooting an air conditioning system that is not cooling effectively. You measure the evaporator temperature at 45°F and the corresponding pressure at 100 PSI. Here’s how you would use the chart:

1. Locate the Temperature: Find 45°F on the temperature axis.
2. Find the Pressure: Move vertically to the pressure axis and note the pressure value.
3. Compare Readings: If the chart indicates that the pressure should be around 110 PSI at 45°F, but your reading is 100 PSI, this suggests a low refrigerant charge.
4. Take Action: Based on this diagnosis, you would add refrigerant to the system to bring the pressure back to the expected value.

🔍 Note: Always ensure that the system is properly charged with refrigerant to avoid performance issues and potential damage to the compressor.

Advanced Uses of the 410A Pt Chart

Beyond basic troubleshooting, the 410A Pt Chart can be used for more advanced applications, such as:

• System Optimization: By fine-tuning the system settings based on the chart, technicians can achieve optimal performance and energy efficiency.
• Component Selection: Engineers use the chart to select appropriate components, such as compressors, evaporators, and condensers, that match the system’s pressure and temperature requirements.
• Performance Monitoring: Regular monitoring of system pressures and temperatures against the chart helps in maintaining peak performance and identifying potential issues before they become critical.

Understanding Pressure-Temperature Relationships

The pressure-temperature relationship is fundamental to the operation of refrigeration systems. The 410A Pt Chart provides a visual representation of this relationship, making it easier to understand and apply. Here are some key points to consider:

• Saturation Pressure: This is the pressure at which a refrigerant changes from a liquid to a vapor at a given temperature. The chart shows the saturation pressure for R-410A at various temperatures.
• Superheat and Subcooling: These terms refer to the temperature difference between the refrigerant and its saturation point. Superheat occurs when the refrigerant is in a vapor state above its saturation temperature, while subcooling occurs when the refrigerant is in a liquid state below its saturation temperature.
• Critical Point: This is the point at which the liquid and vapor phases of the refrigerant become indistinguishable. Beyond this point, the refrigerant behaves like a supercritical fluid.

Understanding these concepts is crucial for interpreting the 410A Pt Chart and applying it effectively in HVAC systems.

Best Practices for Using the 410A Pt Chart

To get the most out of the 410A Pt Chart, follow these best practices:

• Accurate Measurements: Ensure that pressure and temperature measurements are accurate and taken at the correct points in the system.
• Regular Monitoring: Regularly monitor system pressures and temperatures to detect any deviations from the expected values.
• Proper Training: Ensure that technicians are properly trained in using the chart and interpreting the data.
• Documentation: Keep detailed records of system readings and any actions taken based on the chart to facilitate future troubleshooting and maintenance.

By following these best practices, you can effectively use the 410A Pt Chart to maintain and optimize your HVAC systems.

Conclusion

The 410A Pt Chart is an essential tool for anyone working with R-410A refrigerant in HVAC systems. It provides a clear and concise way to understand the pressure-temperature relationship, diagnose issues, and optimize performance. By mastering the use of this chart, technicians and engineers can ensure that their systems operate efficiently, safely, and reliably. Whether you are designing a new system, installing equipment, or troubleshooting existing issues, the 410A Pt Chart is an invaluable resource that should be part of your toolkit.
