Cardiac tamponade is a medical emergency characterized by the accumulation of fluid in the pericardial sac, which surrounds the heart. This condition can lead to impaired cardiac function and, if left untreated, can be fatal. Early detection and intervention are crucial for managing cardiac tamponade effectively. One of the key diagnostic tools in identifying cardiac tamponade is the electrocardiogram (ECG). Understanding the ECG findings in cardiac tamponade can significantly aid in prompt diagnosis and treatment.
Understanding Cardiac Tamponade
Cardiac tamponade occurs when fluid, blood, or other substances accumulate in the pericardial space, compressing the heart and preventing it from filling properly. This compression can lead to a decrease in cardiac output, resulting in hemodynamic instability. The most common causes of cardiac tamponade include:
- Pericarditis
- Trauma
- Malignancy
- Post-cardiac surgery
- Infectious diseases
Clinical Presentation of Cardiac Tamponade
The clinical presentation of cardiac tamponade can vary but often includes:
- Chest pain
- Shortness of breath
- Tachycardia
- Hypotension

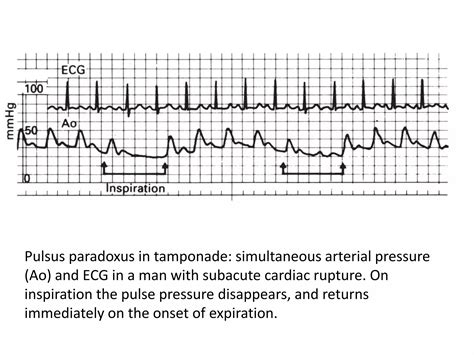

- Pulsus paradoxus (a drop in systolic blood pressure of more than 10 mmHg during inspiration)
- Jugular venous distention
These symptoms can be non-specific, making the diagnosis challenging. Therefore, diagnostic tools like ECG play a crucial role in confirming the condition.
Cardiac Tamponade on ECG

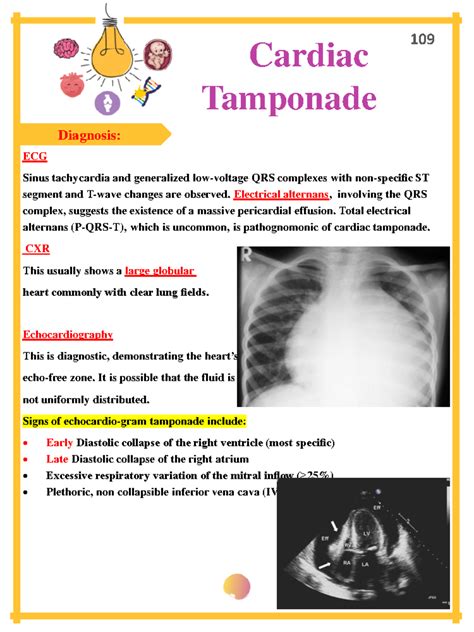

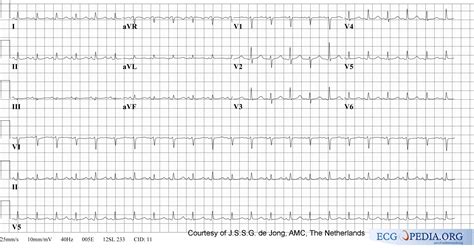

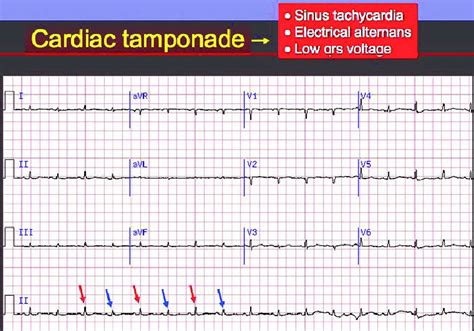

ECG findings in cardiac tamponade are often non-specific but can provide valuable clues. The classic ECG findings in cardiac tamponade include:
- Low-voltage QRS complexes
- Electrical alternans
- Tachycardia
- ST-segment and T-wave changes
These findings are not pathognomonic but can raise suspicion of cardiac tamponade, prompting further diagnostic evaluation.
Low-Voltage QRS Complexes
Low-voltage QRS complexes are a common finding in cardiac tamponade. This occurs due to the increased distance between the heart and the ECG electrodes caused by the fluid in the pericardial space. The QRS amplitude is typically less than 5 mm in all limb leads and less than 10 mm in all precordial leads.
Electrical Alternans
Electrical alternans is a characteristic finding in cardiac tamponade. It is characterized by a beat-to-beat variation in the QRS complex amplitude and axis. This phenomenon is thought to be due to the swinging motion of the heart within the pericardial fluid, causing the electrical axis to vary with each beat.
Tachycardia
Tachycardia is a common finding in cardiac tamponade due to the body’s compensatory response to the decreased cardiac output. The heart rate may be elevated to maintain adequate perfusion to vital organs.
ST-Segment and T-Wave Changes
ST-segment and T-wave changes can also be seen in cardiac tamponade. These changes are often non-specific and can be due to underlying cardiac conditions or the pericardial inflammation associated with tamponade. Common findings include:
- ST-segment depression
- T-wave inversion
- ST-segment elevation
Diagnostic Approach to Cardiac Tamponade
The diagnosis of cardiac tamponade involves a combination of clinical evaluation, ECG findings, and imaging studies. The diagnostic approach typically includes the following steps:
- Clinical history and physical examination
- ECG
- Echocardiography
- Chest X-ray
- Computed tomography (CT) or magnetic resonance imaging (MRI)
Echocardiography
Echocardiography is the gold standard for diagnosing cardiac tamponade. It provides real-time visualization of the pericardial effusion and its effects on cardiac function. Key findings on echocardiography include:
- Pericardial effusion
- Right atrial and ventricular collapse
- Respiratory variation in mitral and tricuspid inflow velocities
Chest X-Ray
A chest X-ray can provide additional information but is not diagnostic for cardiac tamponade. Findings may include:
- Cardiomegaly
- Pericardial effusion
- Pleural effusion
Computed Tomography (CT) or Magnetic Resonance Imaging (MRI)
CT or MRI can provide detailed images of the pericardium and surrounding structures. These imaging modalities are particularly useful in cases where echocardiography is inconclusive or when additional information is needed for surgical planning.
Management of Cardiac Tamponade
The management of cardiac tamponade is primarily focused on relieving the pericardial pressure and restoring cardiac function. The key steps in managing cardiac tamponade include:
- Emergency pericardiocentesis
- Surgical pericardial window or pericardiectomy
- Treatment of the underlying cause
Emergency Pericardiocentesis
Emergency pericardiocentesis is the immediate procedure of choice for relieving pericardial pressure. It involves the insertion of a needle into the pericardial space to drain the fluid. This procedure can be life-saving and should be performed as soon as possible in cases of hemodynamic instability.
Surgical Pericardial Window or Pericardiectomy
In cases where pericardiocentesis is not feasible or when recurrent tamponade occurs, surgical intervention may be necessary. A pericardial window involves creating a small opening in the pericardium to allow fluid to drain. Pericardiectomy involves the removal of a portion of the pericardium and is typically reserved for cases of constrictive pericarditis or recurrent tamponade.
Treatment of the Underlying Cause
Addressing the underlying cause of cardiac tamponade is essential for long-term management. This may involve treating infections, managing malignancies, or addressing post-surgical complications. In some cases, ongoing medical management may be required to prevent recurrence.
📝 Note: The management of cardiac tamponade requires a multidisciplinary approach involving cardiologists, cardiac surgeons, and intensivists. Prompt recognition and intervention are crucial for improving outcomes.
Prognosis of Cardiac Tamponade
The prognosis of cardiac tamponade depends on the underlying cause, the severity of the condition, and the promptness of intervention. With timely diagnosis and appropriate management, the prognosis can be favorable. However, delayed treatment can lead to significant morbidity and mortality.
Prevention of Cardiac Tamponade
Preventing cardiac tamponade involves addressing the underlying risk factors and conditions that predispose individuals to this condition. Key preventive measures include:
- Prompt treatment of pericarditis
- Avoidance of trauma
- Regular follow-up for patients with malignancies
- Post-surgical monitoring
Case Studies
To illustrate the clinical presentation and management of cardiac tamponade, consider the following case studies:
Case Study 1: Post-Cardiac Surgery Tamponade
A 65-year-old male presented with chest pain and shortness of breath two days after coronary artery bypass grafting (CABG). His ECG showed low-voltage QRS complexes and electrical alternans. Echocardiography revealed a large pericardial effusion with right atrial collapse. Emergency pericardiocentesis was performed, and 500 mL of serosanguineous fluid was drained. The patient’s symptoms resolved, and he was discharged home after a few days.
Case Study 2: Malignant Pericardial Effusion
A 50-year-old female with a history of breast cancer presented with progressive dyspnea and fatigue. Her ECG showed low-voltage QRS complexes and sinus tachycardia. Echocardiography demonstrated a large pericardial effusion with diastolic collapse of the right ventricle. Pericardiocentesis was performed, and cytology confirmed malignant cells. The patient underwent chemotherapy and a pericardial window procedure, leading to symptomatic improvement.
Case Study 3: Idiopathic Pericarditis
A 40-year-old male presented with acute chest pain and fever. His ECG showed diffuse ST-segment elevation and PR-segment depression. Echocardiography revealed a small pericardial effusion. The patient was diagnosed with idiopathic pericarditis and treated with non-steroidal anti-inflammatory drugs (NSAIDs). Follow-up echocardiography showed resolution of the effusion, and the patient remained asymptomatic.
These case studies highlight the diverse clinical presentations and management strategies for cardiac tamponade. Early recognition and intervention are key to improving outcomes.
Cardiac tamponade is a medical emergency that requires prompt diagnosis and intervention. Understanding the ECG findings in cardiac tamponade, such as low-voltage QRS complexes and electrical alternans, can aid in early detection. Echocardiography is the gold standard for diagnosing cardiac tamponade, providing real-time visualization of the pericardial effusion and its effects on cardiac function. Management involves emergency pericardiocentesis, surgical intervention, and treatment of the underlying cause. With timely intervention, the prognosis of cardiac tamponade can be favorable. Preventive measures include addressing underlying risk factors and conditions that predispose individuals to this condition. By recognizing the signs and symptoms of cardiac tamponade and implementing appropriate management strategies, healthcare providers can improve outcomes and save lives.
