Centroid Of A Semicircle

Understanding the geometric properties of shapes is fundamental in mathematics and has numerous applications in fields such as engineering, physics, and computer graphics. One such property is the centroid of a semicircle, which is the geometric center of a semicircle. This point is crucial in various calculations and analyses involving semicircular shapes. In this post, we will delve into the concept of the centroid of a semicircle, its calculation, and its significance in different contexts.

Table of Contents

What is the Centroid of a Semicircle?

The centroid of a semicircle is the point where the shape's mass would be balanced if it were made of a uniform material. For a semicircle, this point is located along the axis of symmetry, which is the diameter of the full circle from which the semicircle is derived. The centroid is not at the midpoint of the diameter but is shifted slightly towards the curved part of the semicircle.

Calculating the Centroid of a Semicircle

To calculate the centroid of a semicircle, we need to use integral calculus. The formula for the centroid (x̄, ȳ) of a semicircle with radius r is derived from the moments of the area. The centroid coordinates are given by:

📝 Note: The centroid of a semicircle is located at (0, 4r/3π) when the semicircle is positioned with its diameter along the x-axis and the center at the origin.

The steps to derive this formula involve setting up the integral for the moments of the area and solving it. Here is a step-by-step guide:

Define the semicircle in the coordinate system with the diameter along the x-axis and the center at the origin.
Set up the integral for the first moment of the area about the y-axis (M_y):

M_y = ∫[-r, r] x * √(r² - x²) dx

Set up the integral for the first moment of the area about the x-axis (M_x):

M_x = ∫[-r, r] y * √(r² - x²) dx

Solve these integrals to find the moments.
Use the moments to find the centroid coordinates:

x̄ = M_y / Area

ȳ = M_x / Area

For a semicircle, the area is πr²/2. Solving the integrals, we find that the centroid is located at (0, 4r/3π).

Significance of the Centroid of a Semicircle

The centroid of a semicircle has several important applications in various fields:

Engineering and Physics: In structural engineering, the centroid is used to determine the center of mass of semicircular structures, which is crucial for stability and balance. In physics, it helps in calculating the moment of inertia and other dynamic properties of semicircular objects.
Computer Graphics: In computer graphics, the centroid is used in rendering and animation to ensure that semicircular shapes are accurately represented and move realistically.
Mathematics: In mathematics, understanding the centroid of a semicircle is essential for solving problems related to areas, volumes, and moments of shapes.

Applications in Real-World Scenarios

The concept of the centroid of a semicircle is applied in various real-world scenarios. Here are a few examples:

Architecture: In the design of arches and domes, the centroid helps in determining the optimal placement of support structures to ensure stability.
Aerospace Engineering: In the design of aircraft wings, the centroid is used to balance the aerodynamic forces and ensure smooth flight.
Robotics: In robotics, the centroid is used to calculate the center of mass of robotic arms and other components, which is crucial for precise movements and stability.

Examples and Calculations

Let's consider a few examples to illustrate the calculation of the centroid of a semicircle.

Example 1: Centroid of a Semicircle with Radius 5

For a semicircle with a radius of 5 units, the centroid is located at (0, 4*5/3π).

Calculating the y-coordinate:

ȳ = 4*5/3π = 20/3π ≈ 2.12

So, the centroid is at (0, 2.12).

Example 2: Centroid of a Semicircle with Radius 10

For a semicircle with a radius of 10 units, the centroid is located at (0, 4*10/3π).

Calculating the y-coordinate:

ȳ = 4*10/3π = 40/3π ≈ 4.24

So, the centroid is at (0, 4.24).

Visual Representation

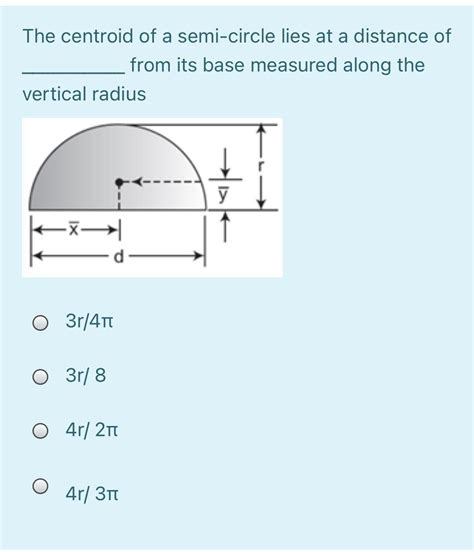

To better understand the concept, let's visualize the centroid of a semicircle. Below is an image of a semicircle with its centroid marked.

Conclusion

The centroid of a semicircle is a fundamental concept in geometry with wide-ranging applications in engineering, physics, computer graphics, and mathematics. By understanding how to calculate the centroid and its significance, we can solve various problems related to semicircular shapes. Whether in structural design, aerospace engineering, or robotics, the centroid plays a crucial role in ensuring stability, balance, and accuracy. The next time you encounter a semicircle, remember that its centroid is not just a point but a key to unlocking its geometric properties and practical applications.
