Full Bridge Rectification

Understanding the principles of Full Bridge Rectification is crucial for anyone working with electrical circuits, especially those involving alternating current (AC) to direct current (DC) conversion. This process is fundamental in various applications, from power supplies to battery chargers. This blog post will delve into the intricacies of Full Bridge Rectification, explaining its components, working principles, advantages, and practical applications.

Table of Contents

What is Full Bridge Rectification?

Full Bridge Rectification is a type of rectifier circuit that converts AC voltage to DC voltage using four diodes arranged in a bridge configuration. This setup ensures that the output voltage is always in the same direction, regardless of the input AC waveform’s polarity. The circuit is designed to handle both positive and negative halves of the AC cycle, making it more efficient than half-wave rectifiers.

Components of a Full Bridge Rectifier

A Full Bridge Rectifier consists of the following key components:

Diodes: Four diodes are used to form the bridge. These diodes allow current to flow in only one direction, ensuring that the output is always positive.
AC Input: The alternating current source that needs to be converted to direct current.
Load: The component or circuit that will receive the rectified DC voltage.
Filter Capacitor: Often used to smooth out the ripples in the rectified output, providing a more stable DC voltage.

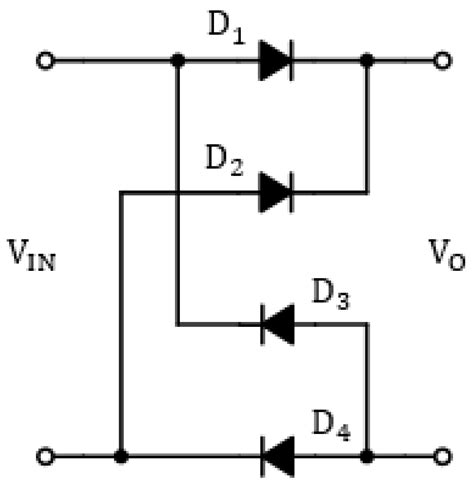

Working Principle of Full Bridge Rectification

The working principle of a Full Bridge Rectifier can be understood by examining the circuit’s operation during both the positive and negative halves of the AC cycle.

During the positive half-cycle of the AC input:

Diodes D1 and D3 conduct, allowing current to flow through the load in one direction.
Diodes D2 and D4 are reverse-biased and do not conduct.

During the negative half-cycle of the AC input:

Diodes D2 and D4 conduct, allowing current to flow through the load in the same direction as during the positive half-cycle.
Diodes D1 and D3 are reverse-biased and do not conduct.

This bidirectional conduction ensures that the output voltage is always positive, regardless of the input AC waveform’s polarity.

Advantages of Full Bridge Rectification

Full Bridge Rectification offers several advantages over other rectification methods:

Efficiency: Full Bridge Rectifiers are more efficient than half-wave rectifiers because they utilize both halves of the AC cycle.
Ripple Reduction: The output voltage has a lower ripple factor, making it easier to smooth out with a filter capacitor.
Higher Output Voltage: The peak output voltage is higher compared to half-wave rectifiers, providing a more stable DC supply.
Simplicity: The circuit is relatively simple and easy to implement, requiring only four diodes and minimal additional components.

Applications of Full Bridge Rectification

Full Bridge Rectification is widely used in various applications due to its efficiency and reliability. Some of the most common applications include:

Power Supplies: Full Bridge Rectifiers are used in power supplies for electronic devices, ensuring a stable DC output.
Battery Chargers: They are essential in battery chargers, converting AC mains voltage to DC for charging batteries.
Motor Drives: Full Bridge Rectifiers are used in motor drives to convert AC to DC, which is then used to control the motor’s speed and direction.
Solar Inverters: In solar power systems, Full Bridge Rectifiers are used to convert the DC output of solar panels to AC for grid connection.

Full Bridge Rectifier Circuit Analysis

To better understand the performance of a Full Bridge Rectifier, let’s analyze its circuit using a simple example. Consider a Full Bridge Rectifier with an AC input voltage of 230V RMS and a load resistance of 100 ohms.

The peak voltage (Vp) of the AC input can be calculated as:

Vp = Vrms × √2

Where Vrms is the root mean square voltage.

For a 230V RMS input:

Vp = 230V × √2 ≈ 325.27V

The average output voltage (Vdc) of the Full Bridge Rectifier can be approximated as:

Vdc = (2 × Vp) / π

Substituting the peak voltage:

Vdc = (2 × 325.27V) / π ≈ 207.08V

The ripple voltage (Vr) can be calculated using the formula:

Vr = (Vp - Vdc) / (2 × f × C × R)

Where f is the frequency of the AC input, C is the capacitance of the filter capacitor, and R is the load resistance.

Assuming a filter capacitor of 1000 µF and a frequency of 50 Hz:

Vr = (325.27V - 207.08V) / (2 × 50Hz × 1000µF × 100Ω) ≈ 0.58V

This analysis shows that the Full Bridge Rectifier provides a stable DC output with minimal ripple, making it suitable for various applications.

💡 Note: The actual ripple voltage may vary depending on the specific components and circuit design. The above calculation is a simplified approximation.

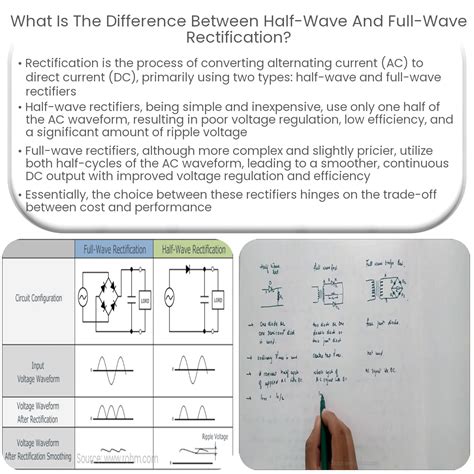

Full Bridge Rectifier vs. Half-Wave Rectifier

To appreciate the advantages of Full Bridge Rectification, it’s helpful to compare it with a Half-Wave Rectifier. A Half-Wave Rectifier uses only one diode and rectifies only the positive half of the AC cycle. Here’s a comparison:

Feature	Half-Wave Rectifier	Full Bridge Rectifier
Efficiency	Lower efficiency due to utilization of only half the AC cycle	Higher efficiency due to utilization of both halves of the AC cycle
Ripple Factor	Higher ripple factor	Lower ripple factor
Output Voltage	Lower peak output voltage	Higher peak output voltage
Complexity	Simpler circuit with fewer components	More complex circuit with four diodes

As shown in the table, Full Bridge Rectifiers offer significant advantages in terms of efficiency, ripple reduction, and output voltage, making them a better choice for most applications.

Practical Considerations for Full Bridge Rectification

When implementing a Full Bridge Rectifier, several practical considerations should be kept in mind to ensure optimal performance:

Diodes Selection: Choose diodes with appropriate voltage and current ratings to handle the expected load and input voltage.
Heat Dissipation: Ensure proper heat dissipation for the diodes, as they can generate significant heat during operation.
Filtering: Use a suitable filter capacitor to smooth out the ripples in the output voltage, providing a more stable DC supply.
Protection: Implement protection circuits to safeguard the rectifier from overvoltage, overcurrent, and short-circuit conditions.

By considering these factors, you can design a reliable and efficient Full Bridge Rectifier circuit tailored to your specific application.

Full Bridge Rectification is a fundamental concept in electronics, essential for converting AC to DC efficiently. Its advantages, such as higher efficiency, lower ripple, and higher output voltage, make it a preferred choice for various applications. Understanding the working principles, components, and practical considerations of Full Bridge Rectification enables engineers and hobbyists to design and implement effective power conversion systems.
