Kirchoff Voltage Law

Electrical engineering is a field rich with fundamental principles that govern the behavior of electrical circuits. Among these principles, Kirchoff Voltage Law (KVL) stands out as a cornerstone for analyzing and designing electrical systems. Understanding KVL is crucial for anyone delving into the world of electronics, whether you're a student, a hobbyist, or a professional engineer. This post will explore the intricacies of KVL, its applications, and how it can be used to solve complex circuit problems.

Table of Contents

Understanding Kirchoff Voltage Law

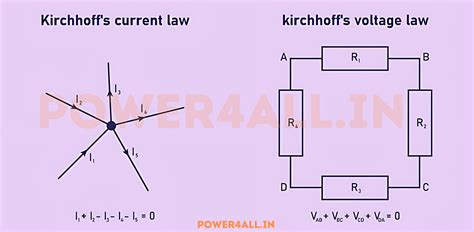

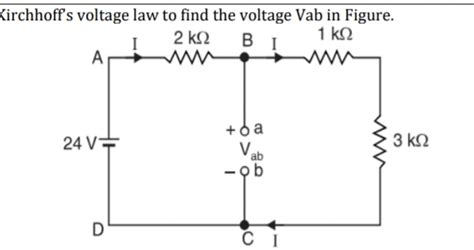

Kirchoff Voltage Law, named after German physicist Gustav Kirchhoff, states that the sum of all voltages around a closed loop in a circuit must equal zero. This law is based on the principle of conservation of energy, which means that the energy supplied by voltage sources must be equal to the energy dissipated by resistors and other components in the circuit.

Mathematically, KVL can be expressed as:

∑V = 0

Where V represents the voltage across each component in the loop. This equation is fundamental for analyzing circuits and ensuring that the voltage drops and rises balance out to zero.

Applications of Kirchoff Voltage Law

KVL has a wide range of applications in electrical engineering. Some of the key areas where KVL is applied include:

Circuit Analysis: KVL is used to analyze the voltage distribution in circuits, helping engineers understand how different components interact.
Designing Electrical Systems: Engineers use KVL to design efficient and reliable electrical systems, ensuring that voltage levels are within safe and operational limits.
Troubleshooting: KVL is a valuable tool for diagnosing faults in electrical circuits. By applying KVL, engineers can identify where voltage drops are occurring and pinpoint the source of the problem.
Power Systems: In large-scale power systems, KVL is used to ensure that voltage levels are maintained across the grid, preventing power losses and ensuring stable operation.

Solving Circuit Problems with Kirchoff Voltage Law

To illustrate how KVL is used to solve circuit problems, let's consider a simple example. Imagine a circuit with a 9V battery, a 3Ω resistor, and a 6Ω resistor connected in series.

To find the voltage drop across each resistor, we can apply KVL as follows:

V_battery - V_R1 - V_R2 = 0

Where:

V_battery is the voltage of the battery (9V).
V_R1 is the voltage drop across the 3Ω resistor.
V_R2 is the voltage drop across the 6Ω resistor.

Using Ohm's Law (V = IR), we can express the voltage drops across the resistors in terms of the current I flowing through the circuit:

V_R1 = IR₁ = I * 3Ω

V_R2 = IR₂ = I * 6Ω

Substituting these into the KVL equation, we get:

9V - I * 3Ω - I * 6Ω = 0

Solving for I, we find:

I = 9V / (3Ω + 6Ω) = 1A

Now, we can find the voltage drops across each resistor:

V_R1 = 1A * 3Ω = 3V

V_R2 = 1A * 6Ω = 6V

Thus, the voltage drops across the 3Ω and 6Ω resistors are 3V and 6V, respectively, confirming that the sum of the voltage drops equals the battery voltage.

💡 Note: When applying KVL, always ensure that you account for the polarity of each voltage source and component. The direction of the loop matters, and incorrect polarity can lead to errors in your calculations.

Advanced Applications of Kirchoff Voltage Law

While the basic application of KVL is straightforward, it becomes more complex in circuits with multiple loops and branches. In such cases, KVL is often used in conjunction with Kirchoff Current Law (KCL) to solve for unknown voltages and currents.

Consider a circuit with multiple loops and branches. To apply KVL, you would:

Identify all the loops in the circuit.
Write a KVL equation for each loop, ensuring that the polarity of each voltage source and component is correctly accounted for.
Solve the system of equations to find the unknown voltages and currents.

For example, in a circuit with two loops, you might have the following KVL equations:

Loop 1: V₁ - V_R1 - V_R2 = 0

Loop 2: V₂ - V_R3 - V_R4 = 0

Where V₁ and V₂ are the voltages of the sources in each loop, and V_R1, V_R2, V_R3, and V_R4 are the voltage drops across the resistors.

By solving these equations simultaneously, you can determine the voltage drops and currents in the circuit.

💡 Note: In complex circuits, it's often helpful to use matrix methods or circuit simulation software to solve the system of equations derived from KVL and KCL.

Practical Examples and Case Studies

To further illustrate the practical applications of KVL, let's consider a few real-world examples and case studies.

Example 1: Simple Series Circuit

Consider a simple series circuit with a 12V battery and three resistors (4Ω, 6Ω, and 8Ω) connected in series. To find the voltage drop across each resistor, we apply KVL:

12V - V_R1 - V_R2 - V_R3 = 0

Using Ohm's Law, we express the voltage drops in terms of the current I:

V_R1 = I * 4Ω

V_R2 = I * 6Ω

V_R3 = I * 8Ω

Substituting these into the KVL equation, we get:

12V - I * 4Ω - I * 6Ω - I * 8Ω = 0

Solving for I, we find:

I = 12V / (4Ω + 6Ω + 8Ω) = 0.6A

Now, we can find the voltage drops across each resistor:

V_R1 = 0.6A * 4Ω = 2.4V

V_R2 = 0.6A * 6Ω = 3.6V

V_R3 = 0.6A * 8Ω = 4.8V

Thus, the voltage drops across the 4Ω, 6Ω, and 8Ω resistors are 2.4V, 3.6V, and 4.8V, respectively.

Example 2: Parallel Circuit

Consider a parallel circuit with a 9V battery and three resistors (3Ω, 6Ω, and 12Ω) connected in parallel. To find the voltage drop across each resistor, we apply KVL:

9V - V_R1 = 0

9V - V_R2 = 0

9V - V_R3 = 0

Since the resistors are in parallel, the voltage drop across each resistor is equal to the voltage of the battery:

V_R1 = 9V

V_R2 = 9V

V_R3 = 9V

Thus, the voltage drop across each resistor is 9V.

Case Study: Power Distribution System

In a power distribution system, KVL is used to ensure that voltage levels are maintained across the grid. Consider a simple power distribution system with a 220V source and three transformers connected in series. To find the voltage drop across each transformer, we apply KVL:

220V - V_T1 - V_T2 - V_T3 = 0

Where V_T1, V_T2, and V_T3 are the voltage drops across the transformers. By solving this equation, we can determine the voltage drops and ensure that the system operates within safe limits.

Common Mistakes and Troubleshooting

When applying KVL, there are several common mistakes that can lead to errors in your calculations. Here are some tips to avoid these mistakes:

Incorrect Polarity: Ensure that you account for the polarity of each voltage source and component. Incorrect polarity can lead to errors in your calculations.
Loop Direction: The direction of the loop matters. Ensure that you consistently follow the same direction when writing KVL equations.
Multiple Loops: In circuits with multiple loops, ensure that you write a KVL equation for each loop and solve the system of equations simultaneously.
Component Values: Double-check the values of resistors, voltage sources, and other components to ensure accuracy.

If you encounter issues while applying KVL, here are some troubleshooting steps:

Check Polarity: Verify that the polarity of each voltage source and component is correctly accounted for.
Review Loop Direction: Ensure that you consistently follow the same direction when writing KVL equations.
Verify Component Values: Double-check the values of resistors, voltage sources, and other components.
Use Simulation Software: For complex circuits, use circuit simulation software to verify your calculations.

💡 Note: Always double-check your work and use multiple methods to verify your results. This can help catch errors and ensure accuracy.

Conclusion

Kirchoff Voltage Law is a fundamental principle in electrical engineering that governs the behavior of electrical circuits. By understanding and applying KVL, engineers can analyze, design, and troubleshoot electrical systems with precision and efficiency. Whether you’re a student, a hobbyist, or a professional engineer, mastering KVL is essential for success in the field of electronics. From simple series circuits to complex power distribution systems, KVL provides a reliable framework for ensuring that voltage levels are maintained and that circuits operate as intended.
