Methanol Lewis Structure

Understanding the Methanol Lewis Structure is fundamental for anyone studying chemistry, as it provides insights into the molecular geometry, bonding, and reactivity of methanol. Methanol, with the chemical formula CH₃OH, is the simplest alcohol and serves as a crucial industrial chemical. This post will delve into the Methanol Lewis Structure, its significance, and how to draw it step-by-step.

Table of Contents

What is the Methanol Lewis Structure?

The Methanol Lewis Structure is a diagrammatic representation of the valence electrons in a methanol molecule. It shows how the atoms are bonded together and the distribution of electrons around them. Lewis structures are essential for understanding the chemical properties and behavior of molecules.

Importance of the Methanol Lewis Structure

The Methanol Lewis Structure is important for several reasons:

It helps in understanding the bonding between atoms in the molecule.
It provides insights into the molecular geometry and shape.
It aids in predicting the reactivity and chemical behavior of methanol.
It is crucial for understanding the properties of methanol as a solvent and fuel.

Drawing the Methanol Lewis Structure

Drawing the Methanol Lewis Structure involves several steps. Here’s a detailed guide:

Step 1: Determine the Total Number of Valence Electrons

First, identify the total number of valence electrons in the methanol molecule. Methanol consists of one carbon © atom, four hydrogen (H) atoms, and one oxygen (O) atom.

Carbon has 4 valence electrons.
Each hydrogen has 1 valence electron, so 4 hydrogen atoms contribute 4 valence electrons.
Oxygen has 6 valence electrons.

Adding these together, the total number of valence electrons is:

4 (from C) + 4 (from H) + 6 (from O) = 14 valence electrons.

Step 2: Choose the Central Atom

The central atom in methanol is the carbon atom because it can form bonds with multiple atoms. The oxygen atom is also bonded to the carbon atom, and the hydrogen atoms are bonded to both the carbon and oxygen atoms.

Step 3: Connect the Atoms with Single Bonds

Start by connecting the central carbon atom to the oxygen atom and the three hydrogen atoms with single bonds. This uses up 8 of the 14 valence electrons (4 for the C-O bond and 4 for the C-H bonds).

Step 4: Distribute the Remaining Electrons

After forming the single bonds, you have 6 valence electrons left. Place these electrons around the oxygen atom to complete its octet. Oxygen needs 2 more electrons to complete its octet, so place 2 electrons as a lone pair on the oxygen atom.

Step 5: Check for Octet Rule Compliance

Ensure that all atoms except hydrogen have 8 electrons around them (the octet rule). In the Methanol Lewis Structure, carbon has 8 electrons, oxygen has 8 electrons, and each hydrogen has 2 electrons.

Step 6: Draw the Final Structure

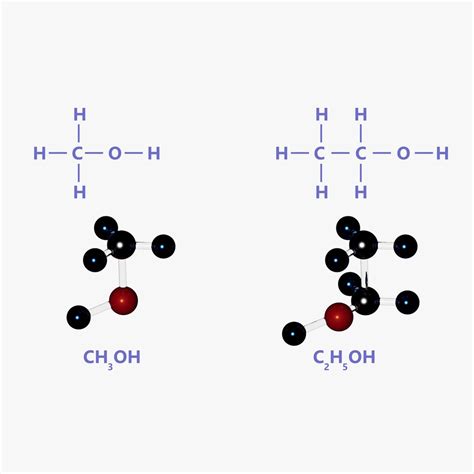

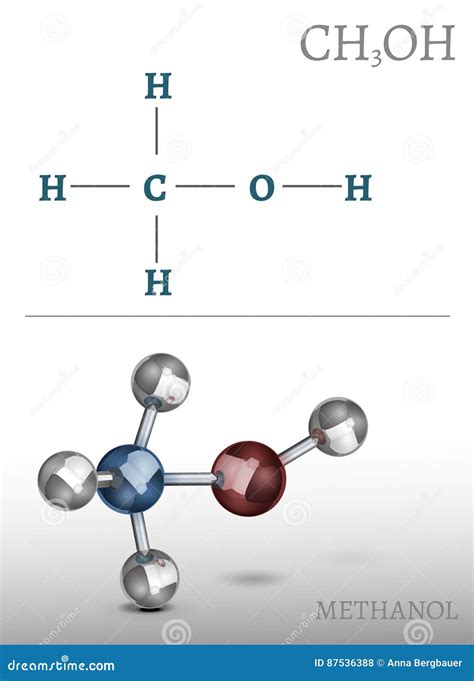

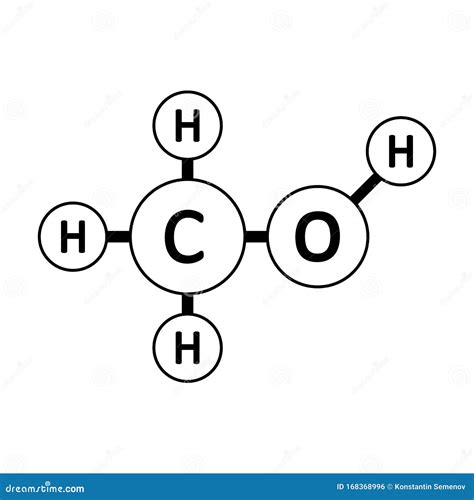

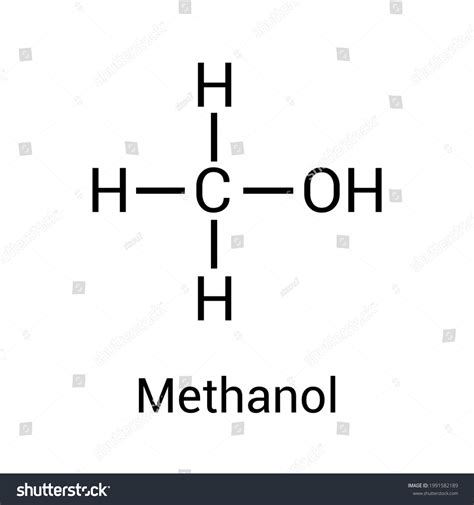

The final Methanol Lewis Structure should look like this:

Molecular Geometry of Methanol

The Methanol Lewis Structure helps in determining the molecular geometry of methanol. The geometry around the carbon atom is tetrahedral, with the oxygen atom and three hydrogen atoms forming a tetrahedral shape. The oxygen atom has a bent shape due to the presence of lone pairs.

Properties of Methanol

Understanding the Methanol Lewis Structure also helps in explaining the properties of methanol:

Polarity: Methanol is a polar molecule due to the electronegativity difference between oxygen and hydrogen, and the presence of lone pairs on the oxygen atom.
Boiling Point: The high boiling point of methanol (64.7°C) is due to hydrogen bonding between molecules.
Solubility: Methanol is soluble in water due to its polar nature and ability to form hydrogen bonds.
Reactivity: Methanol can undergo various reactions, including oxidation, esterification, and dehydration, due to the presence of the hydroxyl group (-OH).

Applications of Methanol

Methanol has numerous applications in various industries:

Fuel: Methanol is used as a fuel in internal combustion engines and fuel cells.
Solvent: It is a common solvent in chemical laboratories and industrial processes.
Chemical Intermediate: Methanol is used to produce other chemicals, such as formaldehyde, acetic acid, and methyl tert-butyl ether (MTBE).
Antifreeze: It is used as an antifreeze in windshield washer fluids.

Safety Considerations

While methanol is a versatile chemical, it is also toxic and flammable. Handling methanol requires careful precautions:

Toxicity: Ingestion of methanol can lead to blindness and even death. It should be handled with gloves and in a well-ventilated area.
Flammability: Methanol is highly flammable and should be kept away from heat sources and open flames.
Storage: It should be stored in a cool, dry place away from incompatible substances.

🔍 Note: Always refer to the Material Safety Data Sheet (MSDS) for specific handling and storage instructions.

Comparing Methanol with Other Alcohols

Methanol is the simplest alcohol, but it shares many properties with other alcohols. Here’s a comparison:

Property	Methanol	Ethanol	Propanol
Formula	CH₃OH	C₂H₅OH	C₃H₇OH
Boiling Point	64.7°C	78.4°C	97.2°C
Solubility in Water	Miscible	Miscible	Miscible
Toxicity	Highly Toxic	Moderately Toxic	Moderately Toxic

While methanol, ethanol, and propanol share similar chemical properties, their toxicity and boiling points differ significantly.

Methanol is a crucial chemical with a wide range of applications. Understanding its Methanol Lewis Structure provides valuable insights into its properties and behavior. By following the steps outlined above, you can draw the Methanol Lewis Structure and gain a deeper understanding of this important molecule. Whether you are a student, researcher, or industry professional, knowing the Methanol Lewis Structure is essential for working with methanol effectively and safely.
