Pex Fitting Types

Plumbing systems are integral to modern infrastructure, ensuring the smooth flow of water and other fluids in residential, commercial, and industrial settings. One of the critical components in these systems is the Pex fitting. Pex fittings are essential for connecting Pex tubing, which is widely used due to its flexibility, durability, and resistance to corrosion. Understanding the various Pex fitting types and their applications is crucial for anyone involved in plumbing projects.

Table of Contents

Understanding Pex Tubing and Fittings

Pex tubing, short for cross-linked polyethylene tubing, is a popular choice for plumbing due to its numerous advantages. It is flexible, making it easy to install in tight spaces, and it resists freezing and bursting, which is a common issue with rigid pipes. Pex fittings are designed to connect Pex tubing securely, ensuring a leak-free system. These fittings come in various types, each suited for different applications and installation methods.

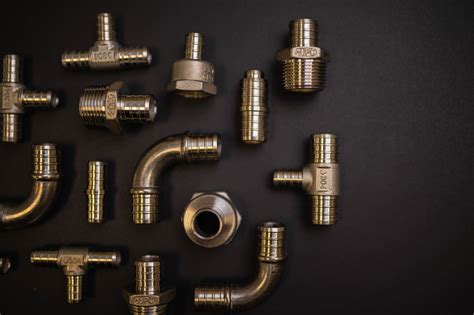

Types of Pex Fittings

Pex fittings can be categorized based on their connection methods and materials. The most common types include:

Crimp Fittings: These fittings use a crimp ring to secure the Pex tubing. A crimping tool is required to compress the ring, creating a tight seal.
Clamp Fittings: Similar to crimp fittings, clamp fittings use a stainless steel clamp instead of a ring. A clamp tool is used to tighten the clamp around the tubing.
Push-Fit Fittings: These fittings allow for quick and easy installation without the need for special tools. The tubing is simply pushed into the fitting, and a built-in O-ring creates a seal.
Expansion Fittings: These fittings use an expansion ring to expand the tubing, allowing it to fit snugly over the fitting. A special expansion tool is required for this process.
Compression Fittings: These fittings use a compression nut and ferrule to create a seal. They are often used in applications where the tubing needs to be disconnected frequently.

Applications of Pex Fittings

Pex fittings are used in a wide range of applications, from residential plumbing to large-scale industrial projects. Some of the most common applications include:

Residential Plumbing: Pex fittings are widely used in residential plumbing systems for water supply lines, radiant floor heating, and snow-melting systems.
Commercial Plumbing: In commercial settings, Pex fittings are used for water supply, fire sprinkler systems, and HVAC applications.
Industrial Plumbing: Pex fittings are also used in industrial settings for chemical transfer, compressed air systems, and other specialized applications.

Choosing the Right Pex Fitting

Selecting the appropriate Pex fitting depends on several factors, including the type of Pex tubing, the application, and the installation method. Here are some key considerations:

Tubing Size: Ensure the fitting matches the size of the Pex tubing. Common sizes include 1/2 inch, 3/4 inch, and 1 inch.
Application: Consider the specific application, such as water supply, heating, or chemical transfer, and choose a fitting that is suitable for that purpose.
Installation Method: Decide on the installation method (crimp, clamp, push-fit, expansion, or compression) based on your tools and expertise.
Material: Choose fittings made from materials that are compatible with the fluids being transported and the environmental conditions.

Here is a table summarizing the different Pex fitting types and their characteristics:

Fitting Type	Connection Method	Tools Required	Advantages	Disadvantages
Crimp Fittings	Crimp ring	Crimping tool	Secure connection, widely available	Requires special tool, can be time-consuming
Clamp Fittings	Stainless steel clamp	Clamp tool	Durable, easy to install	Requires special tool, can be more expensive
Push-Fit Fittings	Push-in	None	Quick and easy installation, no special tools required	May not be suitable for high-pressure applications
Expansion Fittings	Expansion ring	Expansion tool	Strong connection, resistant to leaks	Requires special tool, can be more complex to install
Compression Fittings	Compression nut and ferrule	Wrench	Easy to disconnect, suitable for frequent use	Can be more expensive, may require additional fittings

🔧 Note: Always refer to the manufacturer's guidelines for specific installation instructions and safety precautions.

Installation Tips for Pex Fittings

Proper installation of Pex fittings is crucial for ensuring a leak-free and durable plumbing system. Here are some tips for installing different types of Pex fittings:

Crimp Fittings: Cut the Pex tubing squarely and deburr the edges. Insert the fitting into the tubing and position the crimp ring. Use a crimping tool to compress the ring evenly around the tubing.
Clamp Fittings: Similar to crimp fittings, cut the tubing squarely and deburr the edges. Insert the fitting and position the clamp. Use a clamp tool to tighten the clamp securely.
Push-Fit Fittings: Cut the tubing squarely and deburr the edges. Simply push the tubing into the fitting until it is fully seated. No special tools are required.
Expansion Fittings: Use an expansion tool to expand the tubing. Insert the fitting into the expanded tubing and release the tool to allow the tubing to contract around the fitting.
Compression Fittings: Cut the tubing squarely and deburr the edges. Insert the fitting and tighten the compression nut by hand. Use a wrench to tighten the nut further, ensuring a secure connection.

When installing Pex fittings, it is important to follow these best practices:

Use High-Quality Tools: Invest in high-quality tools designed for Pex fittings to ensure a secure and reliable connection.
Follow Manufacturer Guidelines: Always refer to the manufacturer's instructions for specific installation procedures and safety precautions.
Inspect Connections: After installation, inspect all connections for leaks and ensure they are secure.
Test the System: Before putting the system into full operation, test it under pressure to identify any potential issues.

🛠️ Note: Regular maintenance and inspection of Pex fittings can help prevent leaks and ensure the longevity of the plumbing system.

Common Issues with Pex Fittings

While Pex fittings are generally reliable, there are some common issues that can arise. Understanding these issues can help in troubleshooting and maintaining the plumbing system:

Leaks: Leaks can occur due to improper installation, damaged fittings, or degraded tubing. Regular inspection and maintenance can help prevent leaks.
Corrosion: Although Pex tubing is resistant to corrosion, the fittings themselves can be susceptible to corrosion over time. Using high-quality, corrosion-resistant fittings can mitigate this issue.
Freezing: In cold climates, Pex tubing and fittings can freeze, leading to bursts and leaks. Proper insulation and heating can prevent freezing.
Contamination: Contamination can occur if the Pex tubing or fittings are not properly flushed before installation. Flushing the system thoroughly can help remove any debris or contaminants.

To address these issues, it is important to:

Inspect Regularly: Regularly inspect the plumbing system for signs of leaks, corrosion, or other issues.
Maintain Properly: Follow a maintenance schedule to ensure the system remains in good condition.
Use High-Quality Materials: Invest in high-quality Pex tubing and fittings to ensure durability and reliability.
Seek Professional Help: If issues arise, do not hesitate to seek the help of a professional plumber.

🛠️ Note: Proper installation and regular maintenance can significantly reduce the risk of common issues with Pex fittings.

Future Trends in Pex Fittings

The plumbing industry is continually evolving, and Pex fittings are no exception. Some of the future trends in Pex fittings include:

Advanced Materials: The development of new materials that offer improved durability, corrosion resistance, and flexibility.
Smart Fittings: The integration of smart technology into Pex fittings, allowing for remote monitoring and control of the plumbing system.
Sustainable Solutions: The use of eco-friendly materials and manufacturing processes to reduce the environmental impact of Pex fittings.
Enhanced Installation Methods: The development of new installation methods that are faster, easier, and more reliable.

These trends are driven by the need for more efficient, durable, and sustainable plumbing solutions. As technology advances, Pex fittings will continue to evolve, offering even greater benefits to users.

Pex fittings are a crucial component in modern plumbing systems, offering flexibility, durability, and ease of installation. Understanding the different Pex fitting types and their applications is essential for anyone involved in plumbing projects. By choosing the right fittings and following proper installation and maintenance practices, you can ensure a reliable and long-lasting plumbing system.
