Power Outlet Wire Diagram

Understanding the intricacies of electrical wiring is crucial for anyone involved in home improvement or electrical projects. One of the most fundamental aspects of electrical work is the Power Outlet Wire Diagram. This diagram serves as a blueprint for connecting wires to an outlet, ensuring that the electrical system functions safely and efficiently. Whether you are a DIY enthusiast or a professional electrician, grasping the basics of a Power Outlet Wire Diagram is essential.

Table of Contents

Understanding the Basics of a Power Outlet Wire Diagram

A Power Outlet Wire Diagram is a visual representation of how electrical wires are connected to an outlet. It provides a clear and concise guide on which wires go where, ensuring that the outlet is wired correctly and safely. The diagram typically includes the following components:

Hot Wire (Black): This wire carries the electrical current from the power source to the outlet.
Neutral Wire (White): This wire completes the circuit by returning the electrical current to the power source.
Ground Wire (Green or Bare Copper): This wire provides a safe path for electrical current in case of a short circuit, protecting against electrical shocks.

Each of these wires plays a critical role in the functioning of an electrical outlet. Understanding their roles and how they connect is the first step in interpreting a Power Outlet Wire Diagram.

Reading a Power Outlet Wire Diagram

Reading a Power Outlet Wire Diagram involves identifying the different wires and understanding their connections. Here’s a step-by-step guide to help you read and interpret the diagram:

Identify the Wires: Start by identifying the hot, neutral, and ground wires in the diagram. These are usually color-coded for easy identification.
Locate the Outlet Terminals: Find the terminals on the outlet where the wires will be connected. These are typically labeled as "Hot," "Neutral," and "Ground."
Follow the Connections: Trace the path of each wire from the power source to the outlet terminals. Ensure that the hot wire is connected to the hot terminal, the neutral wire to the neutral terminal, and the ground wire to the ground terminal.
Check for Additional Connections: Some diagrams may include additional connections, such as pigtails or splice points. Ensure that these are correctly identified and connected.

By following these steps, you can accurately read and interpret a Power Outlet Wire Diagram, ensuring that your electrical connections are safe and functional.

Common Types of Power Outlet Wire Diagrams

There are several types of Power Outlet Wire Diagrams, each designed for different types of outlets and electrical systems. Here are some of the most common types:

Standard 120-Volt Outlet: This is the most common type of outlet found in residential homes. It typically includes a hot wire, a neutral wire, and a ground wire.
240-Volt Outlet: This type of outlet is used for high-power appliances such as electric ranges and dryers. It includes two hot wires, a neutral wire, and a ground wire.
GFCI Outlet: Ground Fault Circuit Interrupter (GFCI) outlets are designed to protect against electrical shocks. They include additional wiring for the GFCI mechanism.
Switch-Controlled Outlet: This type of outlet is controlled by a switch, allowing you to turn the power on and off from a different location. The diagram will include wiring for both the outlet and the switch.

Each type of Power Outlet Wire Diagram has its own set of instructions and connections. It’s important to refer to the specific diagram for the type of outlet you are working with.

Step-by-Step Guide to Wiring a Standard 120-Volt Outlet

Wiring a standard 120-volt outlet is a common task that many homeowners and DIY enthusiasts undertake. Here’s a step-by-step guide to help you through the process:

Turn Off the Power: Before beginning any electrical work, turn off the power to the circuit at the main electrical panel. Use a non-contact voltage tester to ensure that the power is off.
Remove the Old Outlet (if applicable): If you are replacing an existing outlet, remove the faceplate and unscrew the outlet from the electrical box. Pull the outlet out and disconnect the wires.
Prepare the Wires: Strip about ½ inch of insulation from the ends of the hot, neutral, and ground wires. Ensure that the wires are clean and free of any damage.

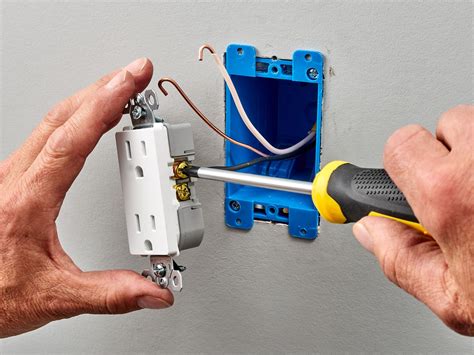

Connect the Wires: Connect the hot wire to the brass screw on the outlet, the neutral wire to the silver screw, and the ground wire to the green screw. Tighten the screws securely.
Attach the Outlet to the Box: Push the outlet back into the electrical box and secure it with screws. Ensure that the outlet is flush with the wall.
Reattach the Faceplate: Screw the faceplate back onto the outlet, covering the electrical box.
Restore Power: Turn the power back on at the main electrical panel and test the outlet to ensure it is functioning correctly.

🔧 Note: Always follow local electrical codes and regulations when wiring an outlet. If you are unsure about any aspect of the process, consult a licensed electrician.

Troubleshooting Common Issues with Power Outlet Wiring

Even with a clear Power Outlet Wire Diagram, issues can arise during the wiring process. Here are some common problems and their solutions:

Outlet Not Working: If the outlet is not working, check the following:
- Ensure that the power is turned on at the main electrical panel.
- Verify that the wires are correctly connected to the outlet terminals.
- Check for any loose or damaged wires.
Outlet Sparking: If the outlet is sparking, it may be due to a loose connection or damaged wires. Turn off the power and inspect the connections. Tighten any loose screws and replace any damaged wires.
Outlet Not Grounded: If the outlet is not grounded, it may not be safe to use. Ensure that the ground wire is properly connected to the ground terminal on the outlet. If the outlet does not have a ground terminal, consider installing a GFCI outlet for added safety.

By addressing these common issues, you can ensure that your outlet is wired correctly and safely.

Safety Precautions When Working with Electrical Wiring

Working with electrical wiring can be dangerous if proper safety precautions are not followed. Here are some important safety tips to keep in mind:

Turn Off the Power: Always turn off the power to the circuit at the main electrical panel before beginning any electrical work.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
Wear Protective Gear: Wear safety glasses and gloves to protect yourself from electrical hazards.
Follow Local Codes: Always follow local electrical codes and regulations when wiring an outlet. If you are unsure about any aspect of the process, consult a licensed electrician.

By following these safety precautions, you can minimize the risk of electrical hazards and ensure a safe working environment.

Advanced Wiring Techniques for Power Outlets

For those looking to take their electrical wiring skills to the next level, there are several advanced techniques that can be applied to power outlets. These techniques include:

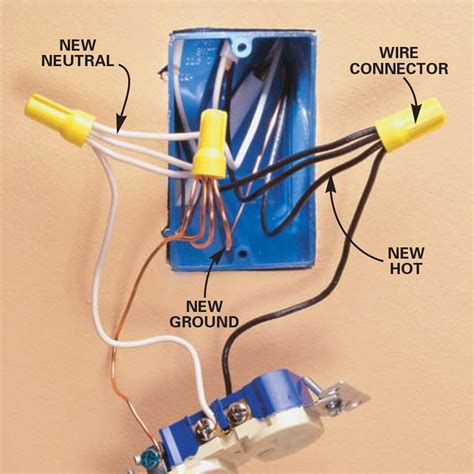

Pigtailing Wires: Pigtailing involves connecting multiple wires to a single terminal using a short piece of wire. This technique is useful when there are multiple wires of the same type (e.g., multiple hot wires) that need to be connected to a single terminal.
Splicing Wires: Splicing involves connecting two wires together using a wire nut or other splicing device. This technique is useful when extending a wire or repairing a damaged wire.
Installing GFCI Outlets: Ground Fault Circuit Interrupter (GFCI) outlets provide added protection against electrical shocks. Installing a GFCI outlet involves additional wiring for the GFCI mechanism, which is typically included in the Power Outlet Wire Diagram for GFCI outlets.

These advanced techniques can help you tackle more complex electrical projects and ensure that your wiring is safe and efficient.

Conclusion

Understanding and using a Power Outlet Wire Diagram is essential for anyone involved in electrical wiring projects. By following the guidelines and steps outlined in this post, you can ensure that your outlets are wired correctly and safely. Whether you are a DIY enthusiast or a professional electrician, mastering the basics of a Power Outlet Wire Diagram will help you tackle a wide range of electrical projects with confidence. Always prioritize safety and follow local electrical codes to ensure a successful and safe wiring job.
