Subwoofer Amp Wiring Diagram

Setting up a subwoofer can significantly enhance your audio experience, providing deep, rich bass that brings your music, movies, and games to life. However, to achieve optimal performance, it's crucial to understand the intricacies of subwoofer amp wiring diagrams. This guide will walk you through the process of wiring your subwoofer amplifier, ensuring you get the best possible sound quality and performance.

Understanding Subwoofer Amp Wiring Diagrams

A subwoofer amp wiring diagram is a visual representation of how to connect your subwoofer amplifier to your speakers and power source. These diagrams are essential for ensuring that all components are correctly wired, which is crucial for both safety and performance. Before diving into the wiring process, it's important to familiarize yourself with the basic components and terminology involved.

Key Components

Subwoofer Amplifier: The device that powers your subwoofer, providing the necessary amplification to produce deep bass.
Subwoofer: The speaker designed to reproduce low-frequency sounds.
Power Source: Typically a car battery or a dedicated power supply for home audio systems.
Speaker Wires: The cables that connect the amplifier to the subwoofer.
Ground Wire: The wire that connects the amplifier to the ground, ensuring a safe and stable electrical connection.

Basic Terminology

Positive Terminal: The (+) terminal on the amplifier and power source.
Negative Terminal: The (-) terminal on the amplifier and power source.
Remote Turn-On Wire: A wire that allows the amplifier to turn on and off with the head unit.
Signal Wire: The wire that carries the audio signal from the head unit to the amplifier.

Preparing for Wiring

Before you begin wiring, it's essential to gather all the necessary tools and components. Here's a checklist to ensure you have everything you need:

Subwoofer amplifier
Subwoofer
Power wire (typically 4-8 gauge, depending on the amplifier's power requirements)
Ground wire (same gauge as the power wire)
Speaker wires
Remote turn-on wire
Signal wire
Fuse holder and fuse
Wire strippers
Crimp connectors or soldering iron
Electrical tape
Screwdrivers

Wiring Your Subwoofer Amplifier

Now that you have all the necessary components, let's dive into the wiring process. Follow these steps carefully to ensure a safe and effective installation.

Step 1: Connect the Power Wire

The power wire is crucial for supplying electricity to your amplifier. Follow these steps to connect it:

Strip about 1/2 inch of insulation from both ends of the power wire.
Connect one end of the power wire to the positive terminal of the power source (battery or power supply).
Connect the other end to the positive terminal on the amplifier.
Install a fuse holder and fuse in the power wire, close to the power source, to protect against short circuits.

Step 2: Connect the Ground Wire

The ground wire ensures a stable electrical connection and helps prevent electrical interference. Follow these steps:

Strip about 1/2 inch of insulation from both ends of the ground wire.
Connect one end of the ground wire to a clean, bare metal surface on the vehicle's chassis or a dedicated ground point.
Connect the other end to the negative terminal on the amplifier.

Step 3: Connect the Speaker Wires

Speaker wires carry the amplified signal from the amplifier to the subwoofer. Follow these steps:

Strip about 1/2 inch of insulation from both ends of the speaker wires.
Connect one end of the speaker wires to the positive and negative terminals on the amplifier.
Connect the other end to the corresponding terminals on the subwoofer.

Step 4: Connect the Remote Turn-On Wire

The remote turn-on wire allows the amplifier to turn on and off with the head unit. Follow these steps:

Strip about 1/2 inch of insulation from both ends of the remote turn-on wire.
Connect one end to the remote turn-on terminal on the amplifier.
Connect the other end to the remote turn-on wire from the head unit. This wire is usually yellow and is often labeled "REM" or "REMOTE."

Step 5: Connect the Signal Wire

The signal wire carries the audio signal from the head unit to the amplifier. Follow these steps:

Strip about 1/2 inch of insulation from both ends of the signal wire.
Connect one end to the signal input on the amplifier.
Connect the other end to the corresponding output on the head unit. This is usually a set of RCA cables.

🔧 Note: Ensure that all connections are secure and that there are no loose wires. Loose connections can cause poor performance and potential safety hazards.

Troubleshooting Common Issues

Even with careful wiring, issues can arise. Here are some common problems and their solutions:

No Sound from the Subwoofer

Check all connections to ensure they are secure.
Verify that the power wire is properly connected to the power source and that the fuse is not blown.
Ensure that the remote turn-on wire is correctly connected to the head unit.
Check the signal wire to ensure it is properly connected to the head unit and amplifier.

Distorted Sound

Check the gain settings on the amplifier to ensure they are not set too high.
Verify that the subwoofer is properly connected and that there are no loose wires.
Ensure that the power wire is of sufficient gauge to handle the amplifier's power requirements.

Intermittent Sound

Check all connections to ensure they are secure.
Inspect the wires for any signs of damage or corrosion.
Ensure that the ground wire is properly connected to a clean, bare metal surface.

Advanced Wiring Configurations

For those looking to optimize their audio setup further, advanced wiring configurations can provide enhanced performance. Here are a few options to consider:

Bridged Configuration

A bridged configuration allows you to connect two amplifiers in parallel, effectively doubling the power output. This is useful for driving multiple subwoofers or for achieving higher power levels. Refer to your amplifier's manual for specific instructions on bridging.

Series Configuration

A series configuration involves connecting multiple subwoofers in series, which can help achieve a higher impedance rating. This is useful for matching the impedance of the subwoofers to the amplifier's requirements. Refer to your amplifier's manual for specific instructions on series wiring.

Parallel Configuration

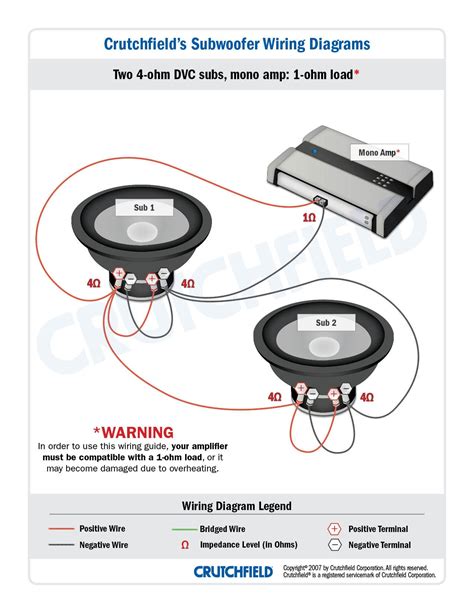

A parallel configuration involves connecting multiple subwoofers in parallel, which can help achieve a lower impedance rating. This is useful for matching the impedance of the subwoofers to the amplifier's requirements. Refer to your amplifier's manual for specific instructions on parallel wiring.

Safety Precautions

Working with electrical components can be dangerous if not done correctly. Here are some safety precautions to keep in mind:

Always disconnect the power source before beginning any wiring work.
Use insulated tools to avoid accidental contact with live wires.
Ensure that all connections are secure and that there are no loose wires.
Avoid working in damp or wet conditions.
If you are unsure about any aspect of the wiring process, consult a professional.

⚠️ Note: Always prioritize safety when working with electrical components. Improper wiring can lead to electrical shocks, fires, and other hazards.

Final Thoughts

Wiring a subwoofer amplifier correctly is essential for achieving optimal performance and ensuring safety. By following the steps outlined in this guide and referring to a subwoofer amp wiring diagram, you can ensure that your audio setup is both effective and safe. Whether you’re a beginner or an experienced audio enthusiast, understanding the intricacies of wiring diagrams will help you get the most out of your subwoofer system.
