Understanding the behavior of chemical reactions under varying conditions is a fundamental aspect of chemistry. One of the key tools used to analyze these reactions is the Van't Hoff Plot. This plot is derived from the Van't Hoff equation, which relates the equilibrium constant of a reaction to temperature. By plotting the natural logarithm of the equilibrium constant (ln K) against the reciprocal of the temperature (1/T), chemists can gain valuable insights into the thermodynamic properties of a reaction.
Understanding the Van't Hoff Equation
The Van't Hoff equation is given by:
📝 Note: The Van't Hoff equation is derived from the Gibbs free energy equation and is expressed as:
ln(K) = -ΔH°/RT + ΔS°/R
Where:
- K is the equilibrium constant of the reaction.
- ΔH° is the standard enthalpy change of the reaction.
- ΔS° is the standard entropy change of the reaction.
- R is the universal gas constant.
- T is the absolute temperature in Kelvin.
This equation shows that the natural logarithm of the equilibrium constant is linearly related to the reciprocal of the temperature. The slope of this line is -ΔH°/R, and the y-intercept is ΔS°/R.
Constructing a Van't Hoff Plot
To construct a Van't Hoff Plot, follow these steps:
- Collect Data: Measure the equilibrium constant (K) at different temperatures (T).
- Calculate ln(K): For each temperature, calculate the natural logarithm of the equilibrium constant.
- Calculate 1/T: For each temperature, calculate the reciprocal of the temperature in Kelvin.
- Plot the Data: Plot ln(K) on the y-axis and 1/T on the x-axis.
- Fit a Line: Draw a best-fit line through the data points. The slope of this line will give you -ΔH°/R, and the y-intercept will give you ΔS°/R.
Here is an example of how the data might look in a table format:
| Temperature (K) | Equilibrium Constant (K) | ln(K) | 1/T (K^-1) |
|---|---|---|---|
| 300 | 0.5 | -0.693 | 0.00333 |
| 310 | 0.6 | -0.511 | 0.00323 |
| 320 | 0.7 | -0.357 | 0.00313 |
| 330 | 0.8 | -0.223 | 0.00303 |
| 340 | 0.9 | -0.105 | 0.00294 |
By plotting these values, you can determine the slope and y-intercept of the line, which will give you the enthalpy and entropy changes of the reaction.

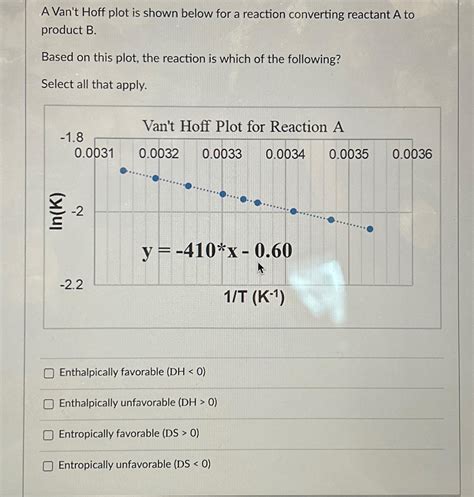

Interpreting the Van't Hoff Plot
The slope of the Van't Hoff Plot provides the standard enthalpy change (ΔH°) of the reaction. A negative slope indicates an exothermic reaction (ΔH° < 0), while a positive slope indicates an endothermic reaction (ΔH° > 0). The y-intercept gives the standard entropy change (ΔS°) of the reaction. A positive y-intercept indicates an increase in entropy, while a negative y-intercept indicates a decrease in entropy.
For example, if the slope of the plot is -2000 K, then:
ΔH° = -slope × R = -(-2000 K) × 8.314 J/(mol·K) = 16.6 kJ/mol
This indicates that the reaction is endothermic with a standard enthalpy change of 16.6 kJ/mol.
Applications of the Van't Hoff Plot
The Van't Hoff Plot has numerous applications in chemistry and related fields. Some of the key applications include:
- Determining Thermodynamic Properties: By analyzing the slope and y-intercept of the plot, chemists can determine the enthalpy and entropy changes of a reaction.
- Predicting Reaction Behavior: The plot can help predict how the equilibrium constant will change with temperature, allowing chemists to optimize reaction conditions.
- Studying Phase Transitions: The Van't Hoff Plot can be used to study phase transitions, such as melting points and boiling points, by analyzing the temperature dependence of the equilibrium constant.
- Enzyme Kinetics: In biochemistry, the plot can be used to study the temperature dependence of enzyme-catalyzed reactions, providing insights into the thermodynamic properties of enzymatic processes.
One of the most significant advantages of the Van't Hoff Plot is its ability to provide a visual representation of the thermodynamic properties of a reaction. This makes it a powerful tool for both research and educational purposes.
Limitations of the Van't Hoff Plot
While the Van't Hoff Plot is a valuable tool, it does have some limitations:
- Assumption of Constant Enthalpy and Entropy: The plot assumes that the enthalpy and entropy changes are constant over the temperature range studied. This may not always be the case, especially for reactions involving significant temperature changes.
- Accuracy of Data: The accuracy of the plot depends on the precision of the equilibrium constant measurements. Any errors in these measurements can lead to inaccuracies in the determined thermodynamic properties.
- Complex Reactions: For complex reactions involving multiple steps or intermediates, the Van't Hoff Plot may not provide a complete picture of the reaction's thermodynamic properties.
Despite these limitations, the Van't Hoff Plot remains a widely used and valuable tool in chemical analysis.
In conclusion, the Van’t Hoff Plot is a fundamental tool in chemistry for analyzing the thermodynamic properties of reactions. By plotting the natural logarithm of the equilibrium constant against the reciprocal of the temperature, chemists can determine the enthalpy and entropy changes of a reaction. This plot has numerous applications, from determining thermodynamic properties to predicting reaction behavior and studying phase transitions. While it has some limitations, the Van’t Hoff Plot continues to be an essential tool in chemical research and education.
