Wood Stud Plan Pattern

Building a sturdy and efficient structure begins with a well-planned Wood Stud Plan Pattern. Whether you're constructing a new wall, a partition, or a complete building, understanding the intricacies of wood stud framing is crucial. This guide will walk you through the essentials of creating a Wood Stud Plan Pattern, from selecting the right materials to executing the plan with precision.

Understanding Wood Stud Framing

Wood stud framing is a fundamental technique in construction, involving the use of vertical and horizontal members to create the framework of a building. The vertical members, known as studs, are typically spaced at regular intervals to support the weight of the structure and provide a base for attaching finishes like drywall or siding.

Selecting the Right Materials

Choosing the right materials is the first step in creating an effective Wood Stud Plan Pattern. Here are some key considerations:

Type of Wood: Common choices include pine, spruce, and fir. Each type has its own strengths and weaknesses, so select based on your specific needs and budget.
Dimensions: Standard stud sizes are 2x4 or 2x6 inches, but the actual dimensions are slightly less due to the planing process. Ensure you choose the right size for your load-bearing requirements.
Quality: Look for straight, knot-free lumber to minimize warping and ensure structural integrity.

Designing Your Wood Stud Plan Pattern

Designing a Wood Stud Plan Pattern involves several steps, including determining the layout, spacing, and placement of studs. Here’s a step-by-step guide:

Determine the Layout

Start by measuring the area where the studs will be placed. Consider the overall dimensions of the wall or structure and mark the locations for the top and bottom plates. The top and bottom plates are the horizontal members that run along the top and bottom of the wall, providing support for the studs.

Spacing the Studs

Standard stud spacing is typically 16 or 24 inches on center. This means the distance between the centers of adjacent studs is either 16 or 24 inches. The 16-inch spacing is more common and provides better support for heavier loads.

To ensure accurate spacing, use a framing square or a laser level. Mark the stud locations on the bottom plate, ensuring they are evenly spaced.

Placing the Studs

Once the stud locations are marked, cut the studs to the appropriate length. Ensure each stud is plumb (vertical) and securely attached to the top and bottom plates using nails or screws. Common nail sizes for studs are 16d or 8d nails, depending on the thickness of the lumber.

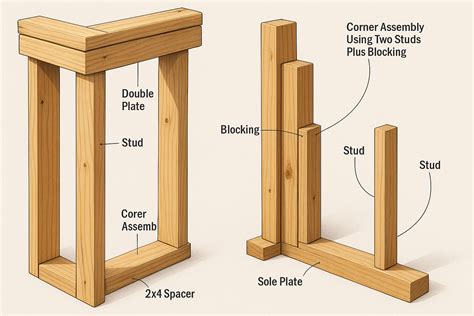

Adding Support Members

In addition to the vertical studs, horizontal support members like cripple studs and blocking may be necessary. Cripple studs are used to support the weight of the structure above windows or doors, while blocking provides additional support between studs.

Common Wood Stud Plan Patterns

There are several common Wood Stud Plan Patterns used in construction, each serving different purposes. Here are a few examples:

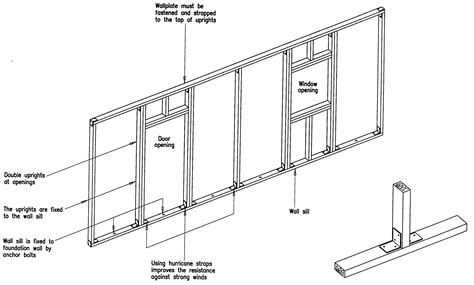

Standard Wall Framing

This is the most basic pattern, involving vertical studs spaced at 16 or 24 inches on center. It is used for non-load-bearing walls and partitions.

Load-Bearing Wall Framing

For load-bearing walls, the studs are typically spaced at 16 inches on center and may include additional support members like double top plates and blocking. This pattern ensures the wall can support the weight of the structure above it.

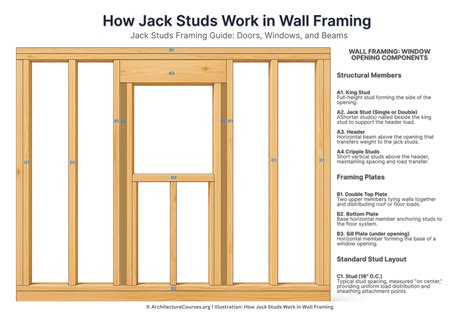

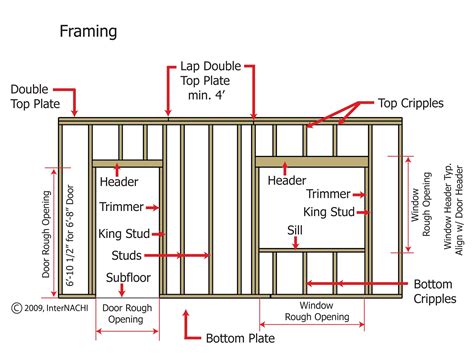

Window and Door Framing

When framing around windows and doors, the pattern includes header and sill plates, as well as cripple studs. The header plate supports the weight above the opening, while the sill plate provides a base for the opening. Cripple studs are used to support the header plate.

Tools and Equipment

Having the right tools and equipment is essential for executing a Wood Stud Plan Pattern effectively. Here are some must-have items:

Measuring Tape: For accurate measurements of stud lengths and spacing.
Framing Square: To ensure studs are plumb and corners are square.
Circular Saw or Miter Saw: For cutting studs to the required lengths.
Nail Gun or Screwdriver: For securing studs to the top and bottom plates.
Level: To ensure studs are vertical and plates are horizontal.

Step-by-Step Guide to Framing a Wall

Here’s a detailed step-by-step guide to framing a wall using a Wood Stud Plan Pattern:

Step 1: Measure and Mark the Layout

Measure the area where the wall will be placed and mark the locations for the top and bottom plates. Use a framing square to ensure the corners are square.

Step 2: Cut the Top and Bottom Plates

Cut the top and bottom plates to the required length using a circular saw or miter saw. Ensure the cuts are straight and accurate.

Step 3: Attach the Bottom Plate

Secure the bottom plate to the floor using nails or screws. Ensure it is level and straight.

Step 4: Mark Stud Locations

Mark the stud locations on the bottom plate, spacing them at 16 or 24 inches on center. Use a framing square to ensure accuracy.

Step 5: Cut and Install Studs

Cut the studs to the required length and install them at the marked locations. Ensure each stud is plumb and securely attached to the bottom plate using nails or screws.

Step 6: Install the Top Plate

Place the top plate on top of the studs and secure it using nails or screws. Ensure it is level and straight.

Step 7: Add Support Members

If necessary, add support members like cripple studs and blocking. Ensure they are securely attached and provide adequate support.

🔧 Note: Always wear safety gear, including gloves and safety glasses, when working with power tools and lumber.

For a visual representation, here is a table outlining the typical dimensions and spacing for a standard Wood Stud Plan Pattern:

Component	Standard Size	Spacing
Studs	2x4 or 2x6 inches	16 or 24 inches on center
Top and Bottom Plates	2x4 or 2x6 inches	N/A
Header and Sill Plates	2x4 or 2x6 inches	N/A
Cripple Studs	2x4 or 2x6 inches	16 inches on center

Tips for Successful Wood Stud Framing

Here are some tips to ensure your Wood Stud Plan Pattern is successful:

Use a Level: Always use a level to ensure studs are plumb and plates are horizontal.
Check for Square: Use a framing square to ensure corners are square and studs are properly aligned.
Secure Connections: Use appropriate nails or screws to secure studs to the top and bottom plates.
Plan for Utilities: Consider the placement of electrical outlets, switches, and plumbing when designing your pattern.

By following these tips and guidelines, you can create a sturdy and efficient Wood Stud Plan Pattern that will serve as the foundation for your construction project.

In conclusion, mastering the art of wood stud framing is essential for any construction project. By understanding the basics of a Wood Stud Plan Pattern, selecting the right materials, and following a detailed plan, you can ensure your structure is strong, stable, and ready for the next phase of construction. Whether you’re a DIY enthusiast or a professional builder, a well-executed Wood Stud Plan Pattern is the key to a successful build.
